 VG-886
수량 :


제품상세보기




Timing Formats

· 12G-SDI Quad-Link 8K 60/59.94p YCbCr 4:2:2 10 bits  (SMPTE 2082-12)
· 12G-SDI Dual-Link 8K 30/29.97p YCbCr 4:2:2 10 bits  (SMPTE 2082-11) *
· 12G-SDI Single-Link 4K 60/59.94p YCbCr 4:2:2 10 bits  (SMPTE 2082-10)
· 6G-SDI Single-Link 4K 30/29.97p YCbCr 4:2:2 10 bits  (SMPTE 2081-10)
(* 12G-SDI Dual Link output is treated as reference)

Features

· 12G-SDI signal 8K 60/59.94p YCbCr 4:2:2  10 bits
· 12G-SDI signal 4K 60/59.94p YCbCr 4:2:2  10 bits
· Supports ITU-R BT.2020
· Audio 32ch can be embedded
· Payload ID can be embedded
· Time code can be embedded
· HDR supported.
· Reference input support (Internal synchronization / external synchronization selectable)
· Supports external control (LAN / RS-232C)

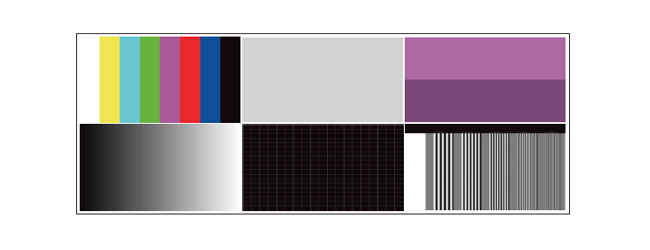

Pattern

· Color bar (100% / 75%)
· Raster (White / Gray)
· Check field (Pathological)
· Ramp
· Crosshatch
· Multiburst
· Black

VG-886 12G-SDI斤뵀컆噓

Specifications

VG-886
VIDEO Number of output terminals 4ch
HD-SDI SMPTE 274M,
3G-SDI SMPTE 425-5, 425-1
6G-SDI SMPTE 2081-10
12G-SDI SMPTE 2082-12, 2082-10
Gradation 10bit
Colorimetry

Rec.ITU-R BT.2020R/Rec.ITU-R BT-709

AUDIO Number of channels 32ch
Sampling frequency 48kHz
Resolution 24bits
Audio level -18dBFs / -20dBFs
Audio frequency 1kHz
PAYLOAD standard SMPTE  ST2082 / ST425-1(Byte2) reference
Insertion code Normal insertion
TIMECODE standard SMPTE 12M-2, 12M-3
Time code VITC TIMECODE
LTC TIMECODE
HFRTC TIMECODE
REFERENCE Interface 75 ┯ BNC input 1 line / 2 lines output
reference Internal synchronization / external synchronization
Sync output 525 NTSC BB signal, 625 PAL BB signal,
1125 HDTV Tri-level synchronization signal
(1125/60i , 1125/59.94i )



External control
RS-232C D-sub 9-pin 9600/19200/38400/57600 bps
LAN 100BASE-T / 100BASE-TX



General Specifications
Power Consumption 20W MAX
Power Requirements DC 12V
Operating temperature range 5∥40→(No condensation)
Operating humidity range 20∥85%(No condensation)
Dimensions 210(W)mm≠44(H)mm≠350(D)mm (1U half, Excluding protrusions)
Weight Approx. 2.0kg

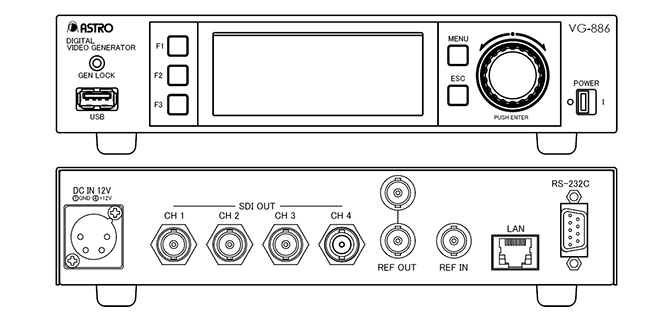

Front / Rear
