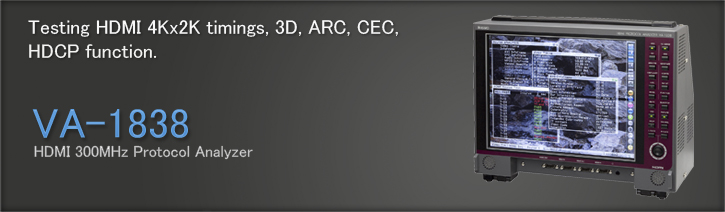

Outline of product
Testing HDMI 4Kx2K timings, 3D, ARC, CEC, HDCP function.
Main Features
・ 4Kx2K timings generating and analyzig
・ (3840x2160 / 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 4096x2160 / 24Hz)
・ Analyzing video timing, audio information, HDCP status, InfoFrame, EDID, xvYCC Deep color
・ Signal generation of EIA timings.
・ 3D display by switching Left and Right images, ARC (Audio Return Channel) detect for both
・ input and outout channels.
・ Log function and Line capture for DDC and CEC line.
・ HDMI Compliance Test Mode for HDMI, HDCP and CEC
・ User friendly operation with mouse control. USB memory data storage. Maximum five data window
display on 12.1inch LCD display.
Specifications
| VA-1838 |
| Pixel Clock |
25 to 300MHz |
| Color Space |
RGB / YCbCr 4:4:4, 4:2:2 |
| H Timings |
H Total Pixels
|
300 to 8191 pixels |
H Active pixels
|
128 to 4096 pixels
|
H Blanking pixels
|
More than 138 pixels
|
| V Timings |
V Frequcncy
|
Less than 60 ms |
| V Total Lines |
30 to 4095 lines
|
| V Active Lines |
128 to 2160 lines |
| V Back Porch Lines |
1-(1/2xV Total lines) lines |
Audio
Input / Output
|
Sampling
Frequency
|
32 to 192KHz(L-PCM 8ch), 768KHz(HBR)
*There is timing limitation
|
Audio Type
|
ISC 60958, 61937 |
| Accuracy |
16, 20, 24-bit
|
| HDCP |
Availble |
| Repeater Function |
Availble(MAX 16ch)
|
| DDC |
DDC2B |
| EDID |
Ver.1.4(CEA EDID Timing Extension Ver.3) |
| USB |
Hostx2 |
For USB mouse control and USB memory |
| Device |
For PC control with utility Software |
| LAN |
For PC control with utility Software |
COAX
Input/Output |
Audio Type |
SPDIF, IEC90958, 61937 |
| Sampling Frequency |
32 to 192KHz(L-PCM 8ch) |
| Bit |
16, 20, 24bit |
Trigger (Optional)
|
Trigger or I2S output |
| General specification |
Power supply
|
AC100 to 240V
|
| Frequency |
50Hz / 60Hz
|
Power Consumption
|
50W |
| Operating Temperature |
+5 to 40℃ |
| Humidity |
30 to 80RH% (no condensation)
|
| Dimensions |
340(W)x265(H)x150(D)mm (without projected paets) |
| Weight |
About 4Kgs
|
